In the realm of heavy machinery, the transmission plays a pivotal role in transferring the immense power generated by the engine to the wheels, enabling these colossal machines to perform their tasks efficiently and effectively. Without these units, you'd be metaphorically and (probably) physically stuck in the mud!

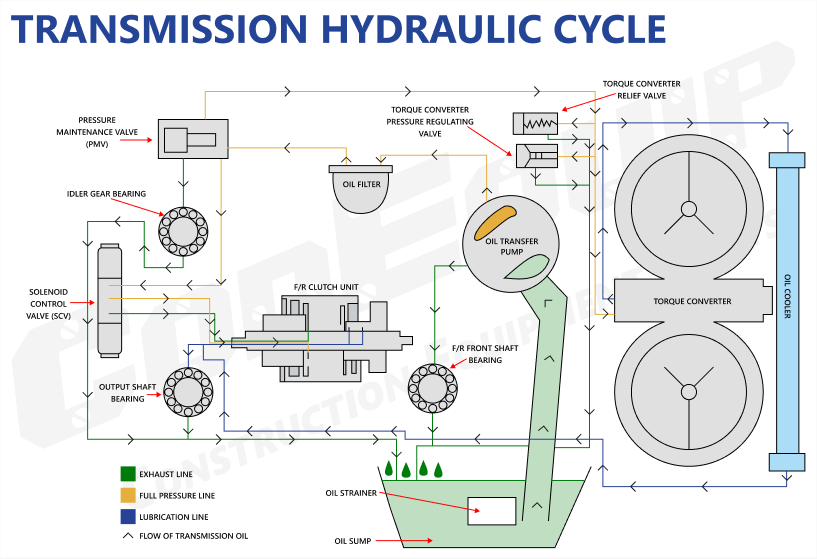

The Components in Transmission Hydraulic Circuit:
1. Torque Converter (TC):
- A worthy replacement for a clutch, the torque converter multiplies torque, channeling the energy from the engine to the gearbox or transmission.
- Functioning as a fluid coupling, the torque converter contains transmission oil, which is crucial for its operation.
2. Oil Cooler:
- The transmission's oil cooler plays a vital role in maintaining the optimal temperature of the transmission oil during its operation.
3. Oil Pump (Charging Pump):
- This pump draws transmission oil from the sump (strainer) and sends it to the oil filter, filtering out any impurities.
4. Transmission Oil Filter:
- An essential component that removes any remaining impurities from the transmission oil before it continues its journey.
5. Forward and Reverse Clutch Units:
- Crucial components that determine the machine's direction of movement, driven by the controlled flow of transmission oil from the SCV.
6. Output Shaft Bearing:
- Supports and facilitates smooth rotation of the output shaft.
The Working Mechanism:
1. Transmission/Charging Pump Suction:
- The transmission pump draws transmission oil from the sump and sends it to the oil filter for purification.
2. Torque Converter Function:
- During torque converter operation, the transmission oil heats up.
- The lubrication lines carry the heated oil to the oil cooler, where it gets cooled down, maintaining its properties.
3. Forward and Reverse Clutch Units:
- Depending on the SCV's control, the transmission oil flows to the respective clutch unit, initiating forward or reverse movement.
The transmission hydraulic circuit in heavy machinery is a marvel of engineering, seamlessly transferring power and enabling these colossal machines to carry out their tasks. Understanding its components and functioning allows us to appreciate the complexity and sophistication behind these formidable giants of the construction and mining industries. Check out this video by TechTrixInfo on youtube that explains how it all works!
