Hyundai Doosan showcased a new member of its iron family during a media event in Tucson, Arizona this week. Doosan showed off a prototype of its first crawler dozer. Doosan says one model will be ready to roll sometime next year.

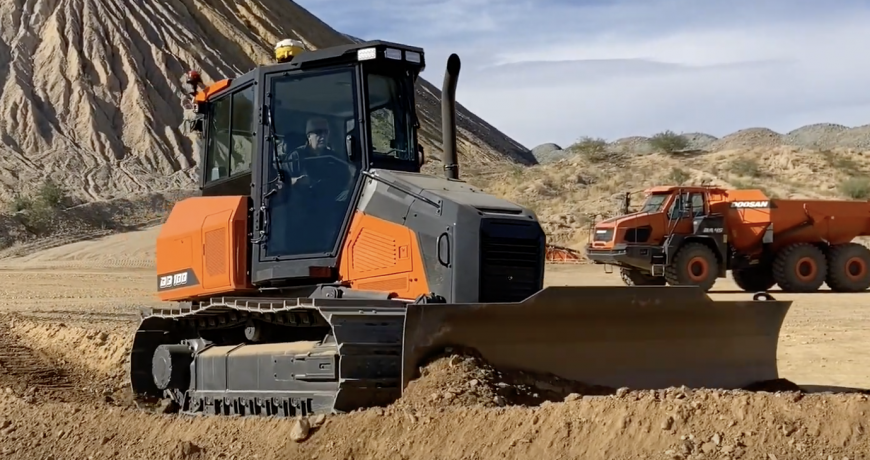

The dozer on display was a 122-horsepower DD100 with an operating weight of 25,300 lbs. A second dozer, a DD130, will be introduced in the first half of 2023.
The Doosan DD100 will feature an 8-inch Smart Touch display, standard rearview camera, LED lights, and wiper blades front, rear, and side.
Doosan says the dozer will come with a 6-way variable-angle-pitch blade. The standard blade has a capacity of 3.0 cubic yards, and the low-ground-pressure configuration will carry a blade with a 3.4-cubic-yard capacity. Pitch angle can be adjusted from 54 to 58 degrees, and the blade has a shake function.
Here is a look at the DD100 prototype specs:
- Horsepower: 122 hp
- Operating weight: 25,309 lb.
- Blade capacity: 3 cu. yd.
- Blade height: 3 ft. 7 in.
- Blade width: 8 ft. 10 in.
- Drawbar pull: 33,721 lb.-ft.
- Track length: 7 ft. 7 in.
- Travel speed, max: 5.7 mph
Company officials said the dozers are just two of many new models Doosan will be adding to its inventory over the next three years. Doosan will release almost a dozen new mini excavator models, including four electric models.
The mini excavator model numbers are:
- DX27Z-7: Q1 2022
- DX35Z-7: Q1 2022
- DX50Z-7: Q1 2022
- DX55R-7: Q1 2022
- DX42-7: Q1 2023
- DX17Z-7: Q1 2023
- DX19-7: Q1 2023
- DX17ZE electric: Q2 2023
- DX19E electric: Q2 2023
- DX10ZE electric: Q1 2024
- DX27ZE electric: Q2 2024
Crawler excavator model numbers are:
- DX1000LC-7: Q1 2022
- DX350LCR-7 (reduced tail swing): Q4 2022
- DX200LC-7: Q1 2023
Doosan is now part of Hyundai but company officials say the two brands will continue to operate individually which means parts and service will be unique to each other.
